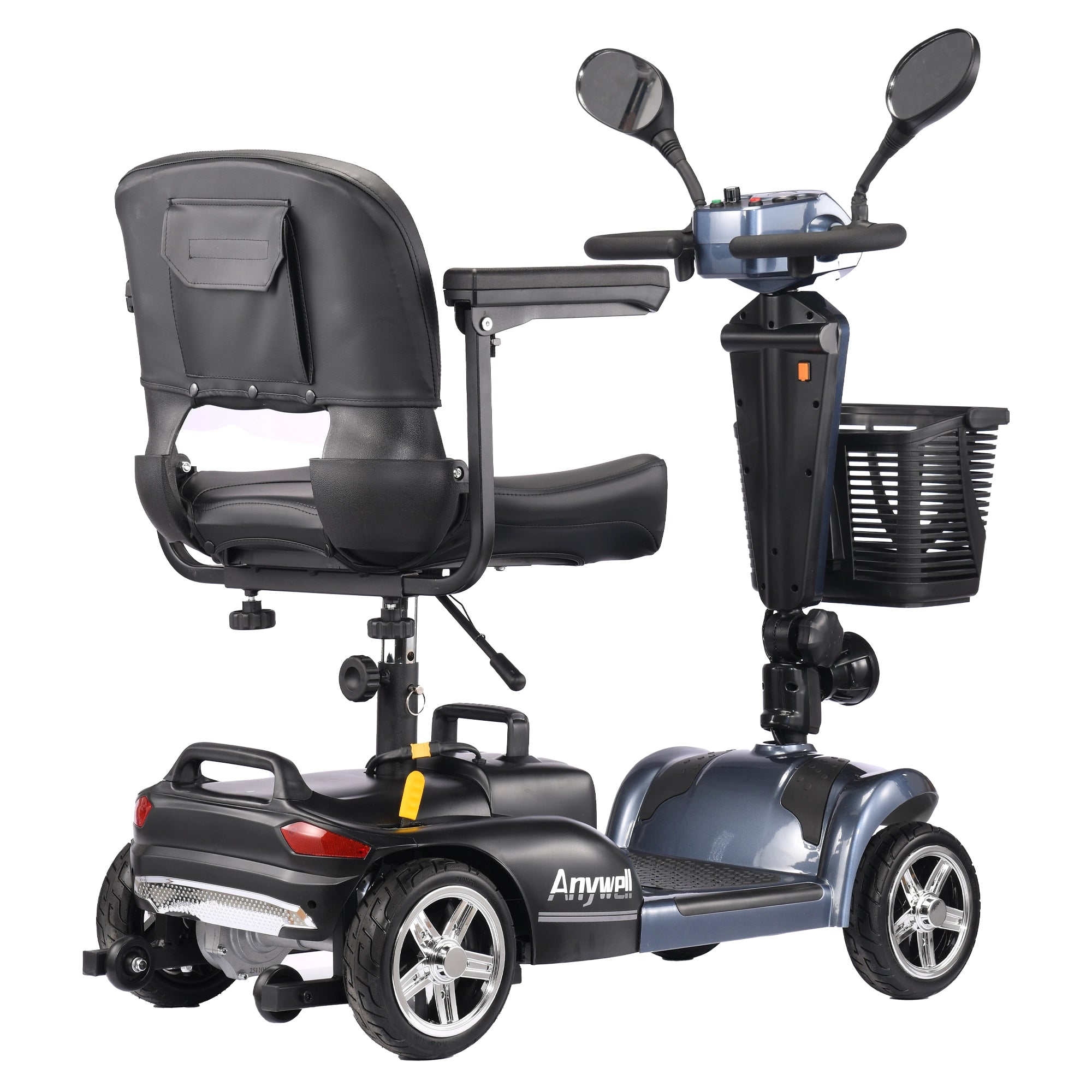

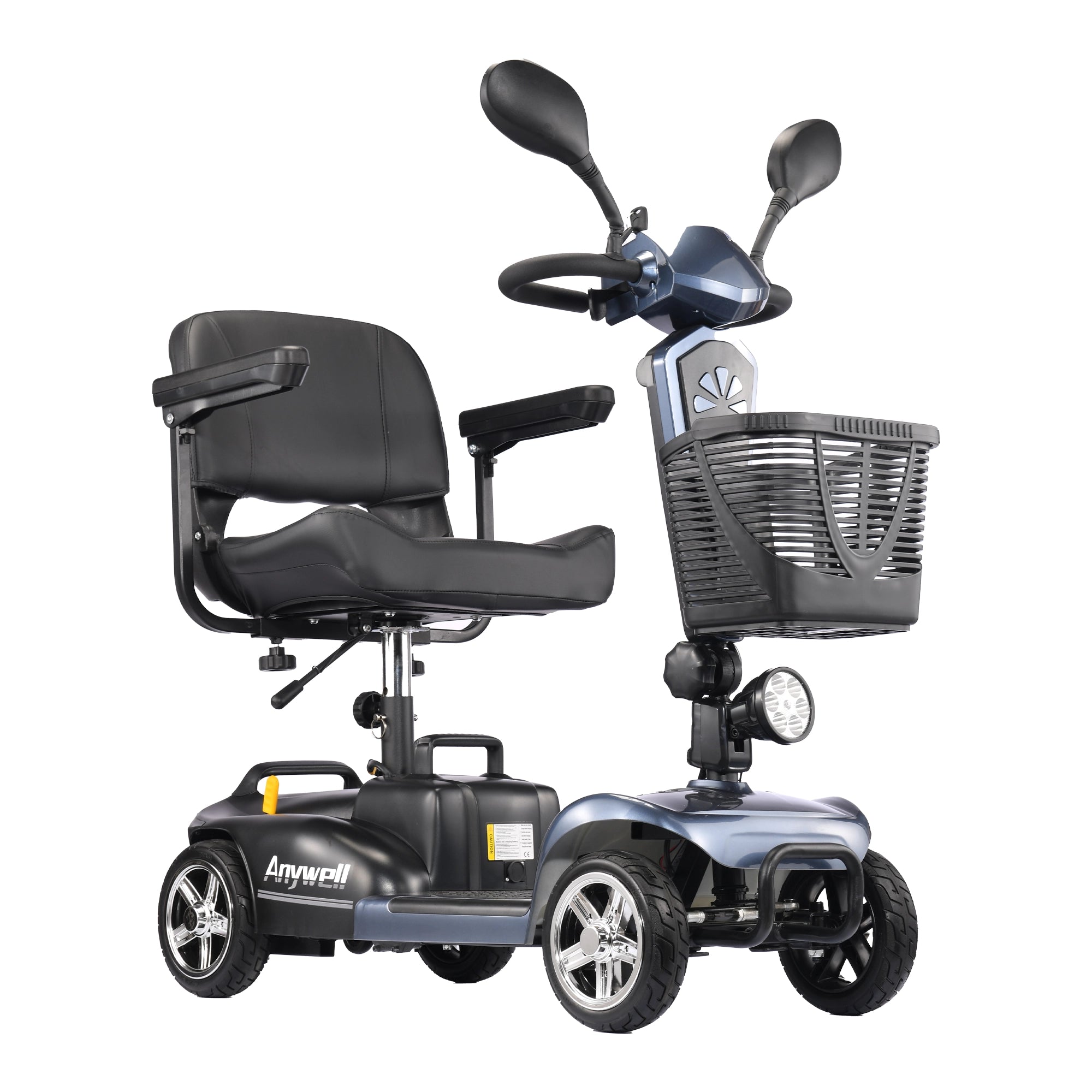

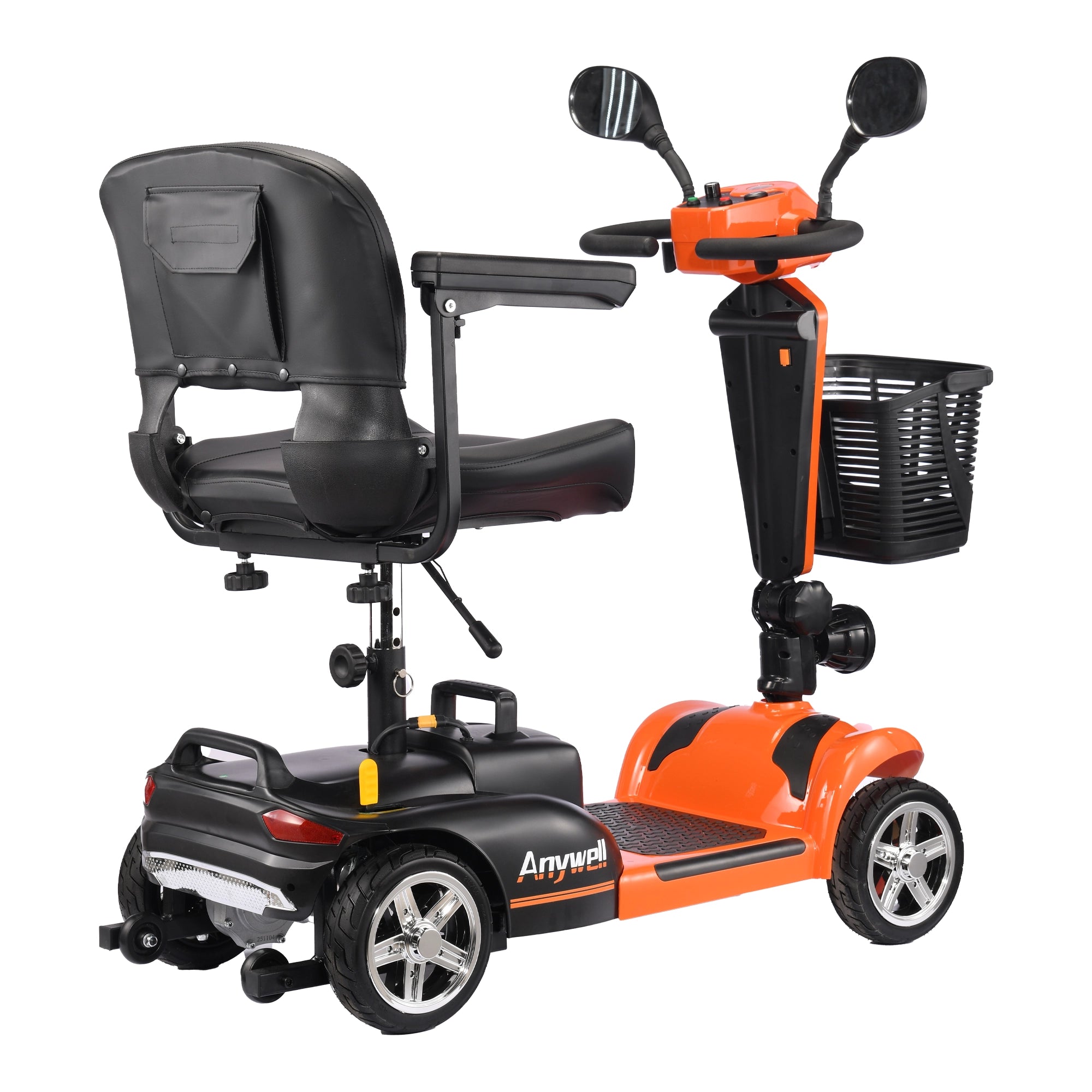

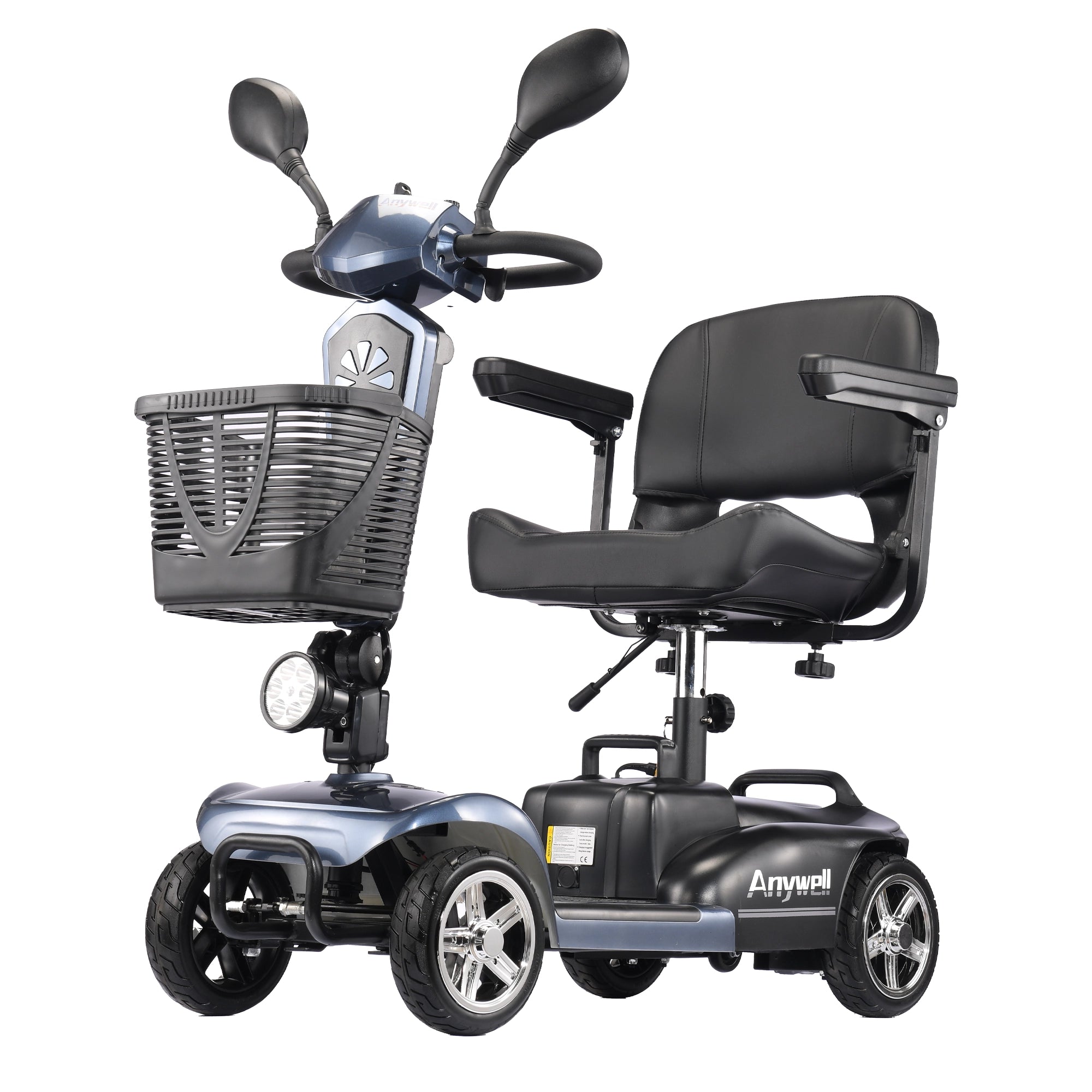

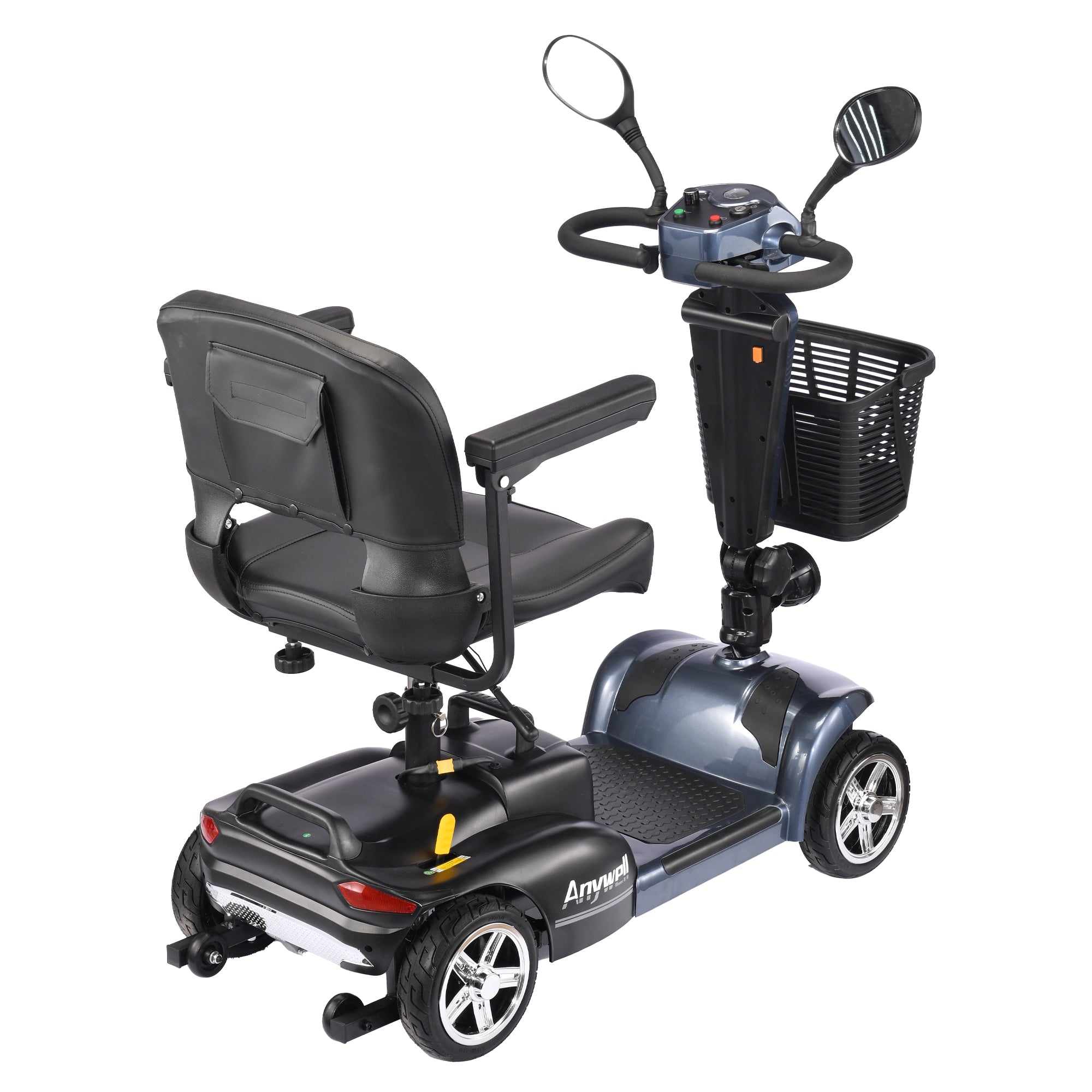

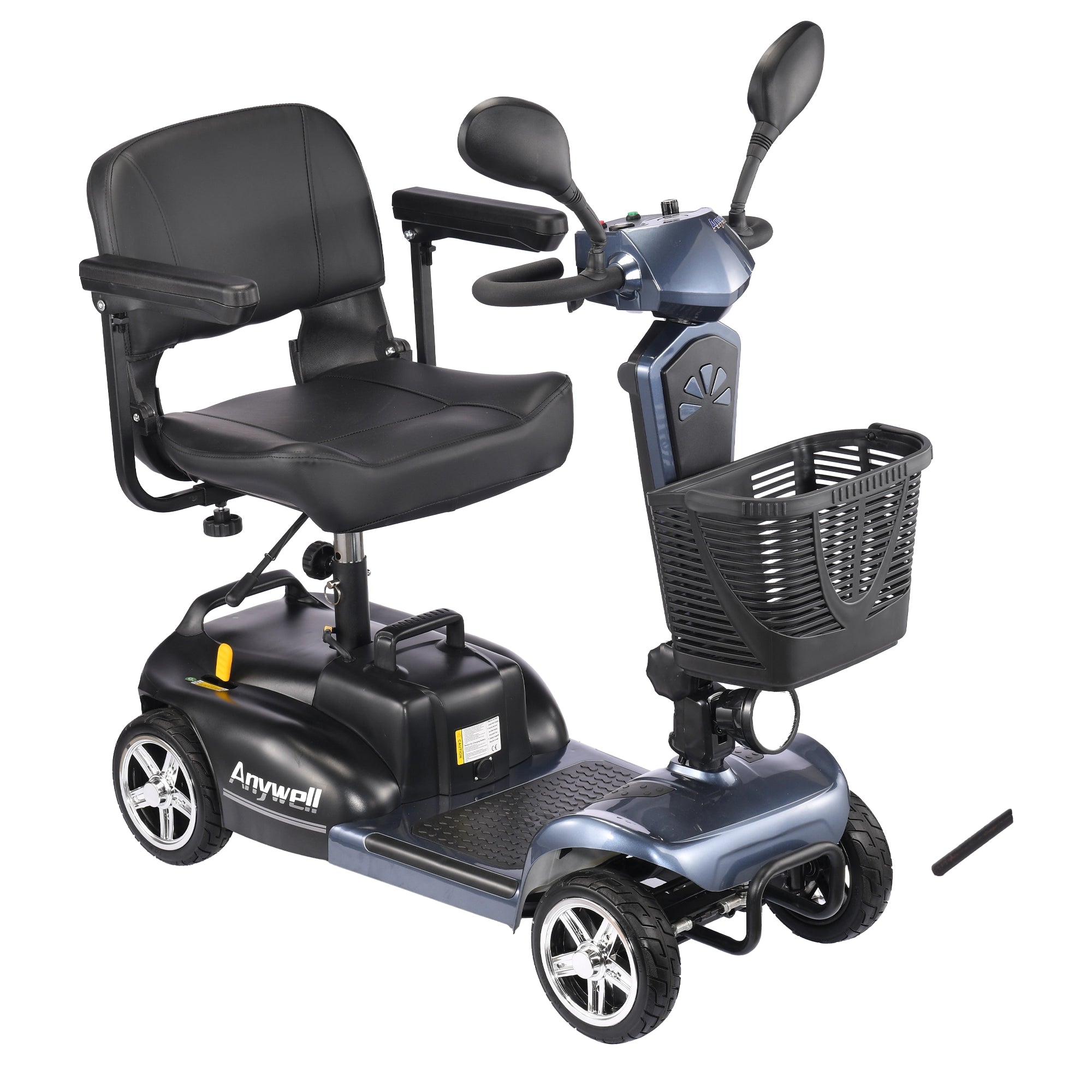

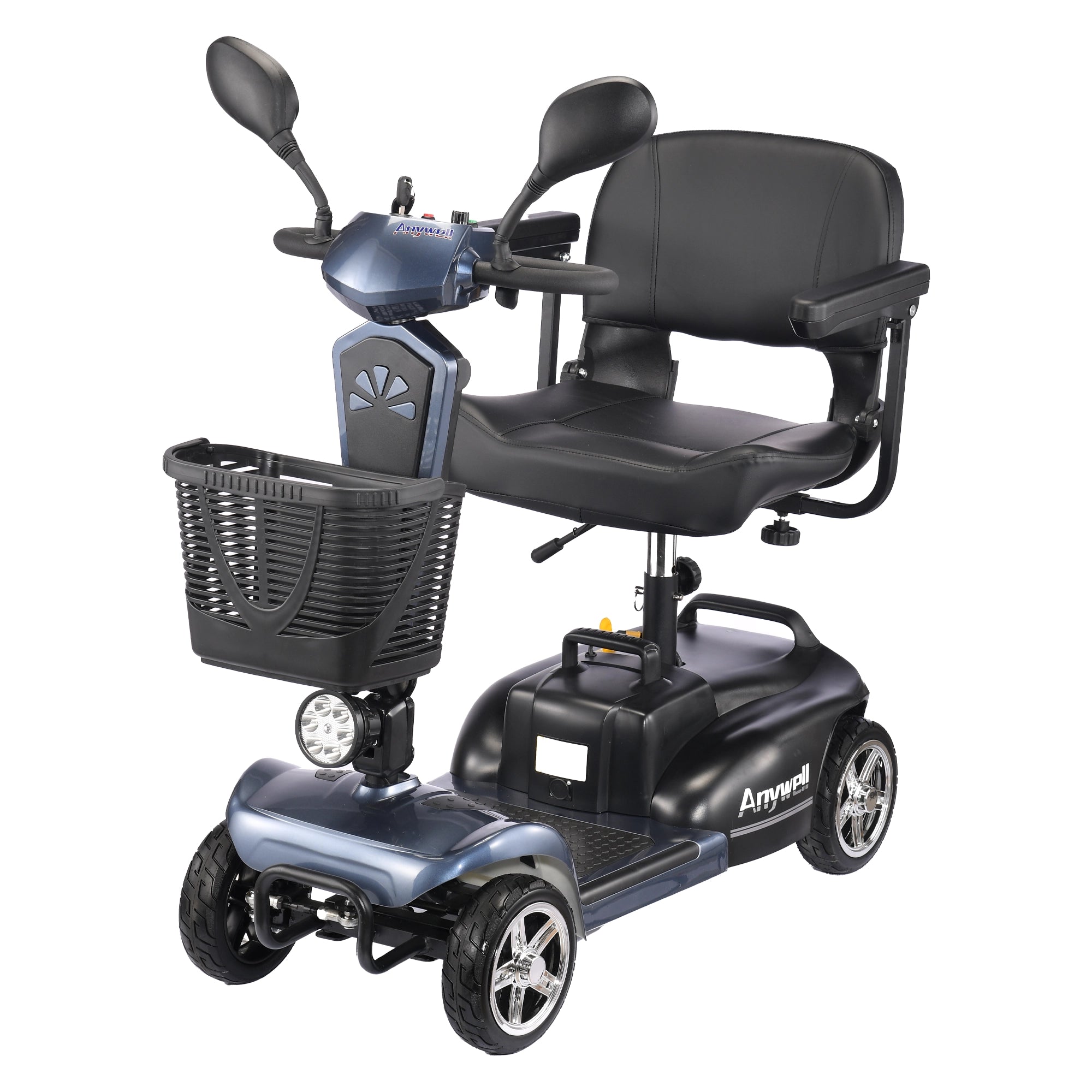

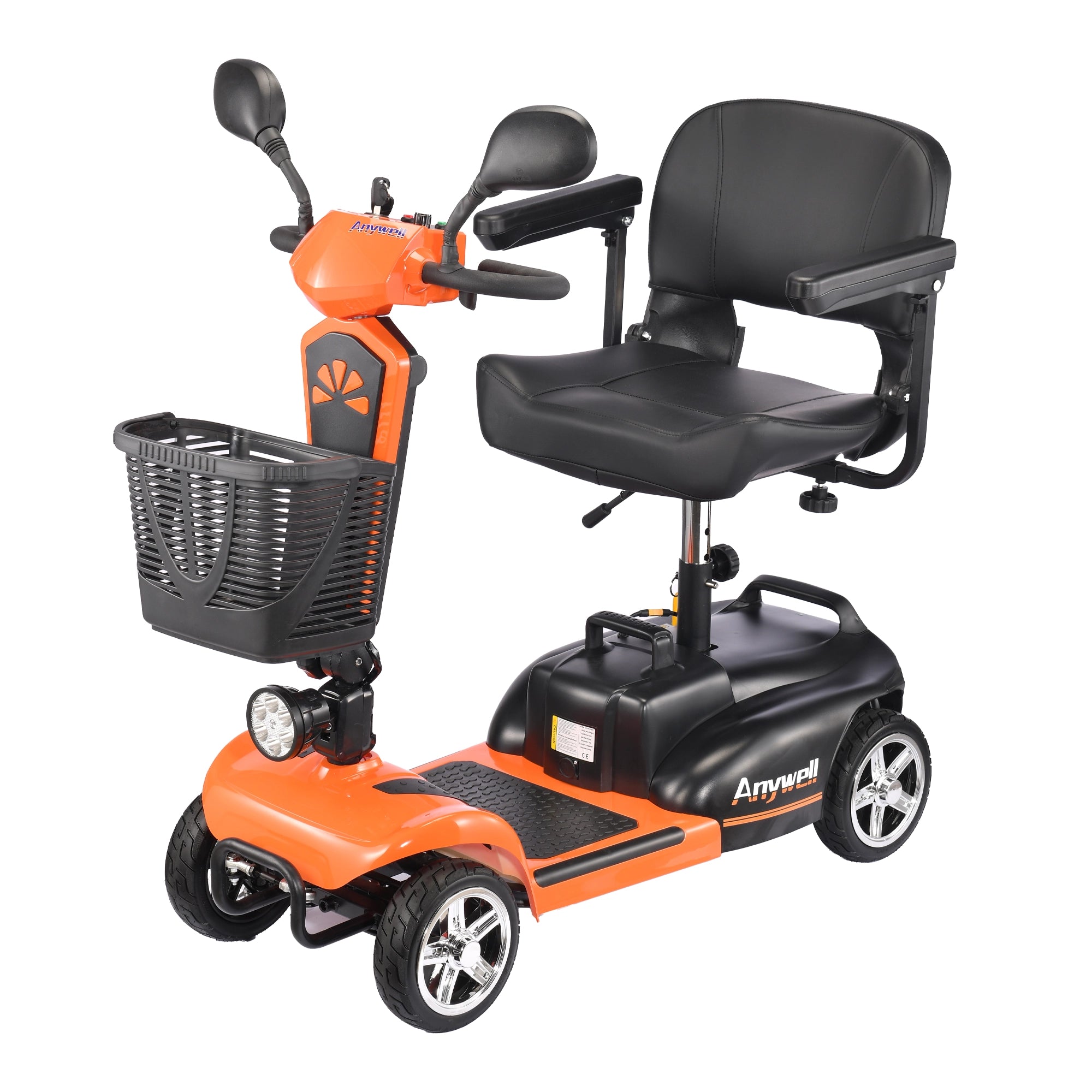

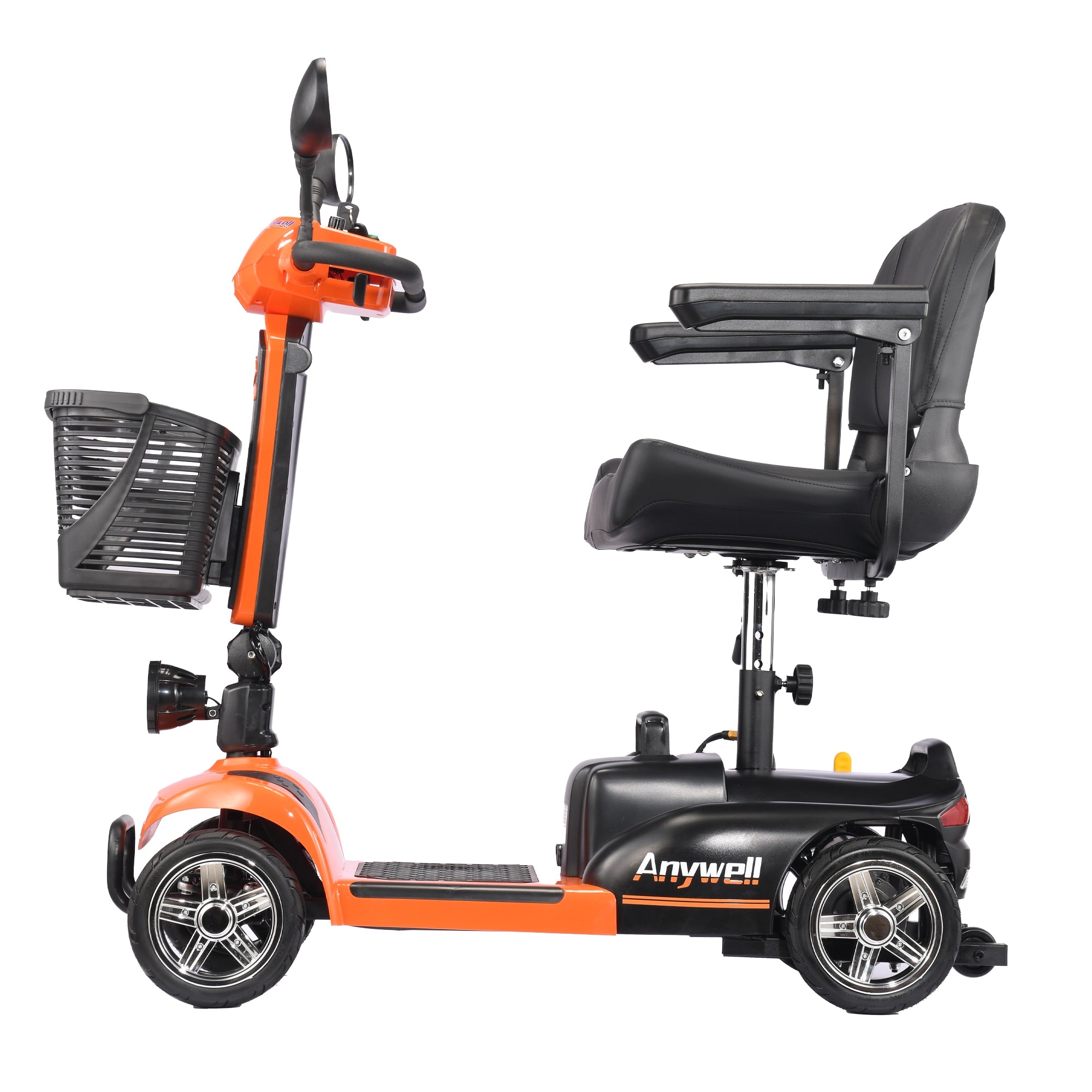

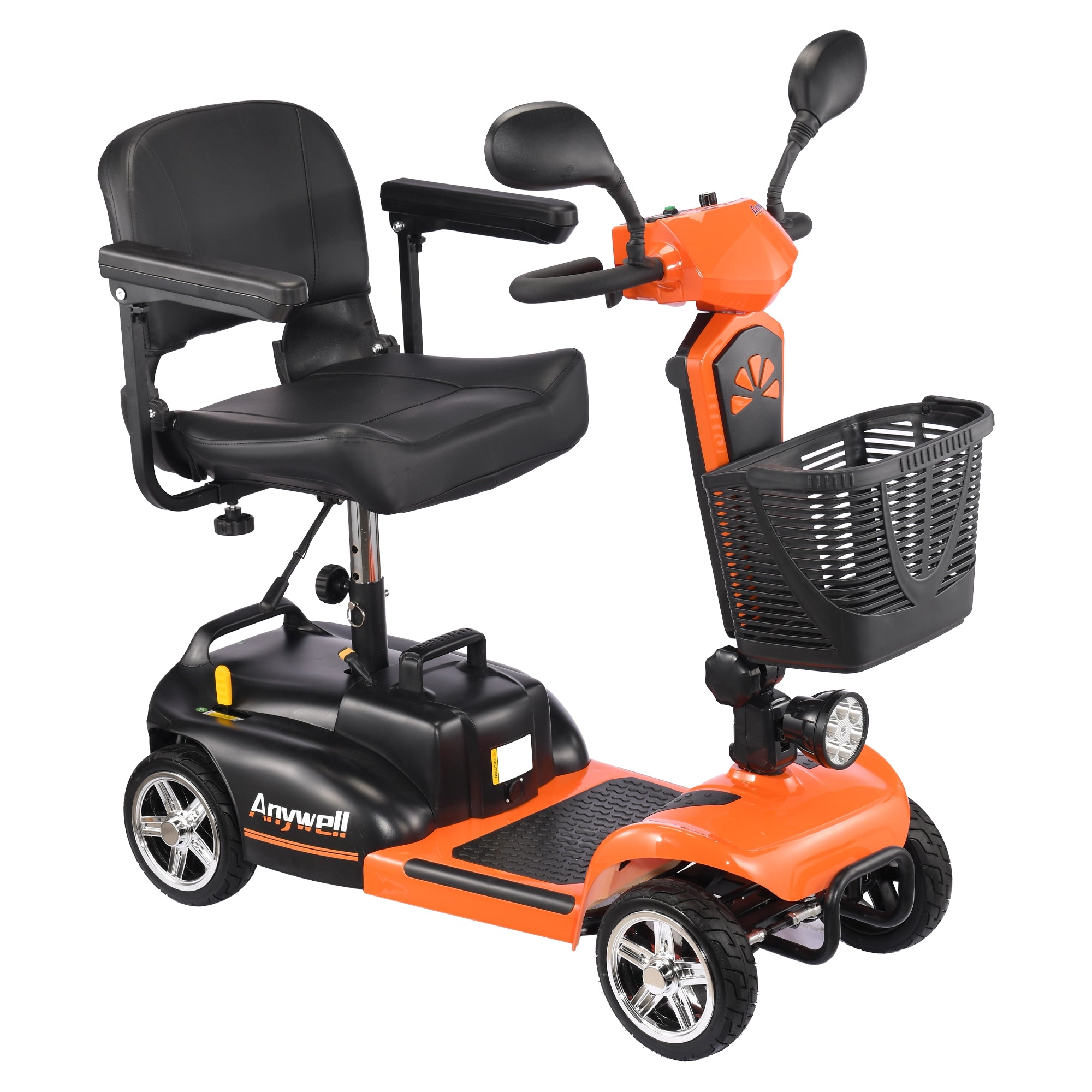

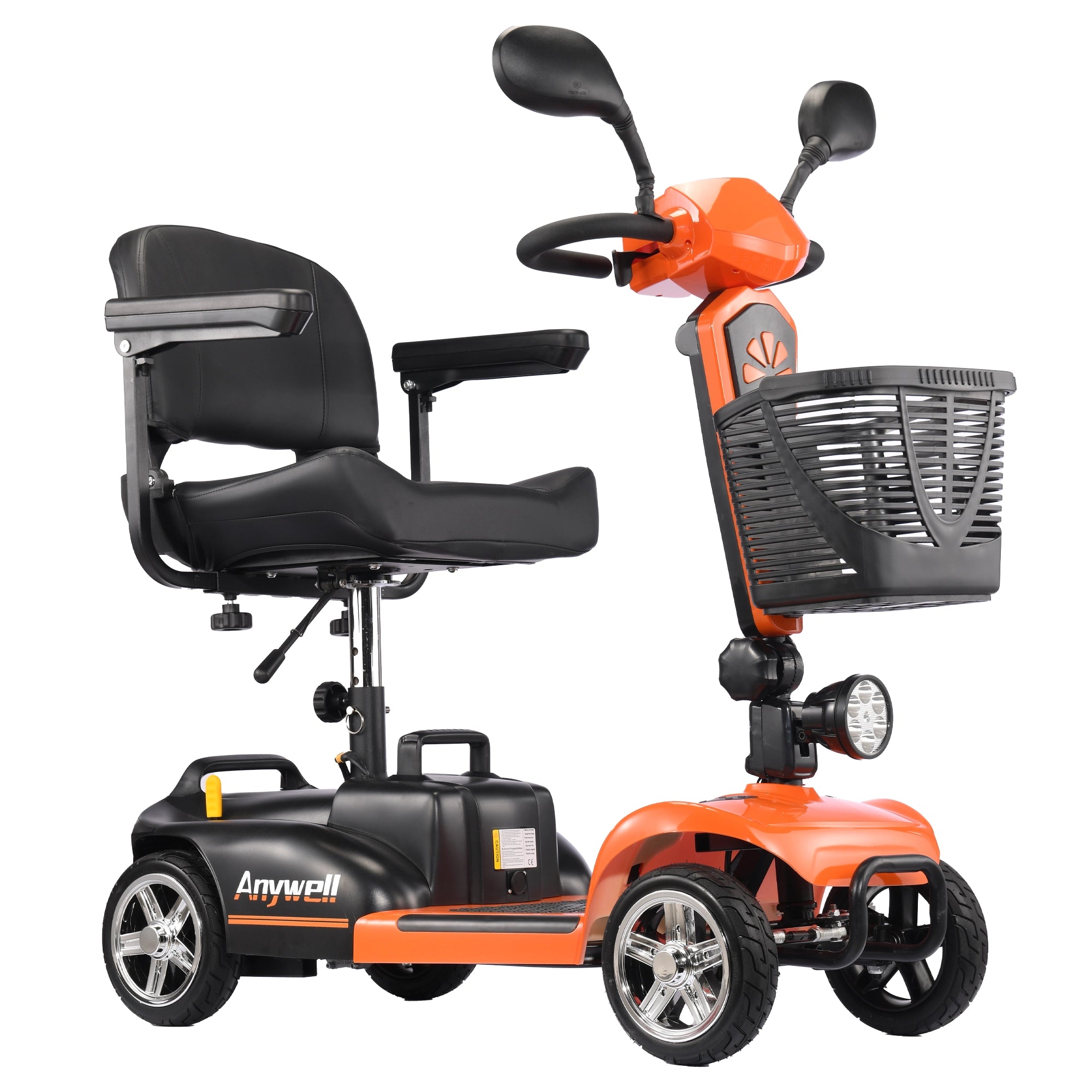

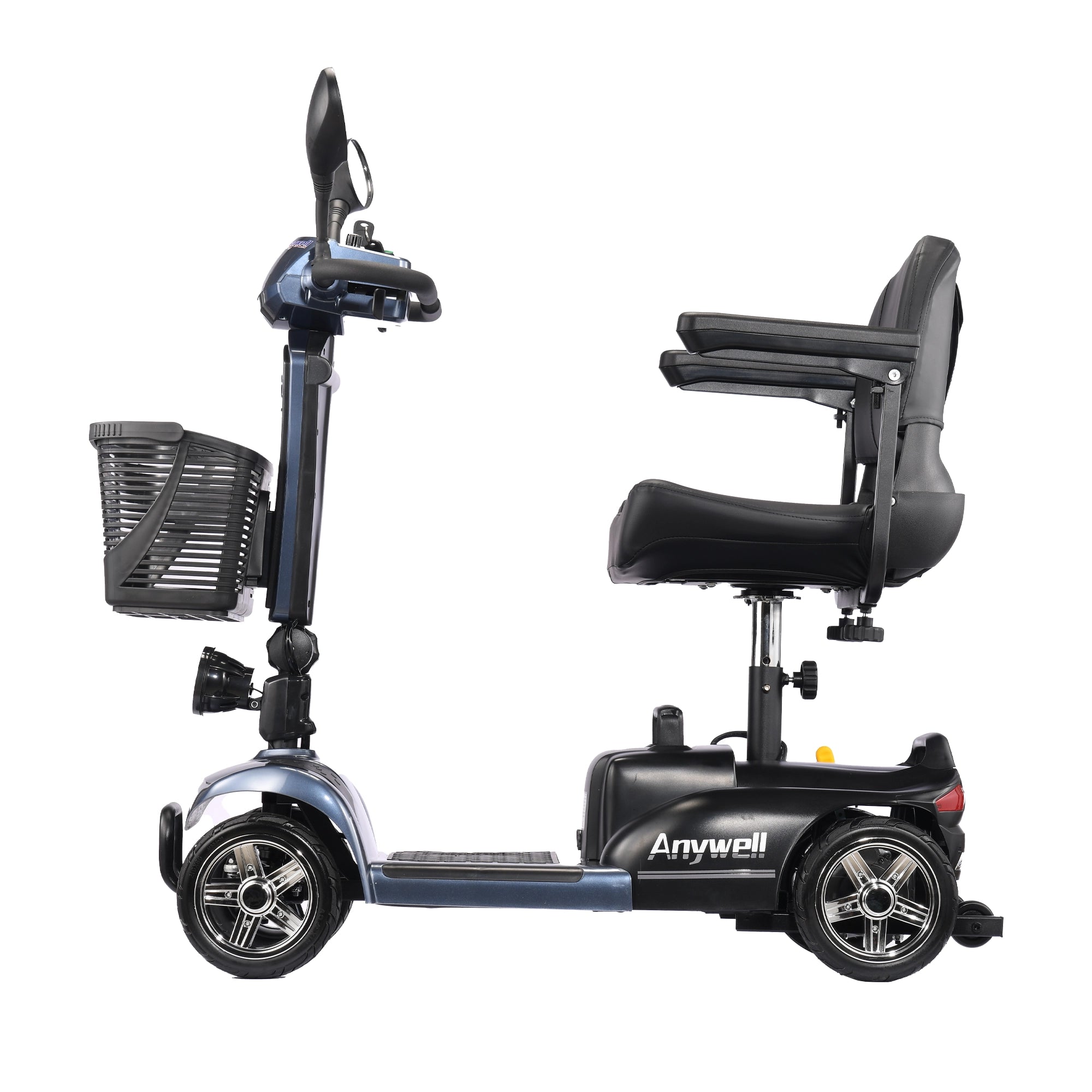

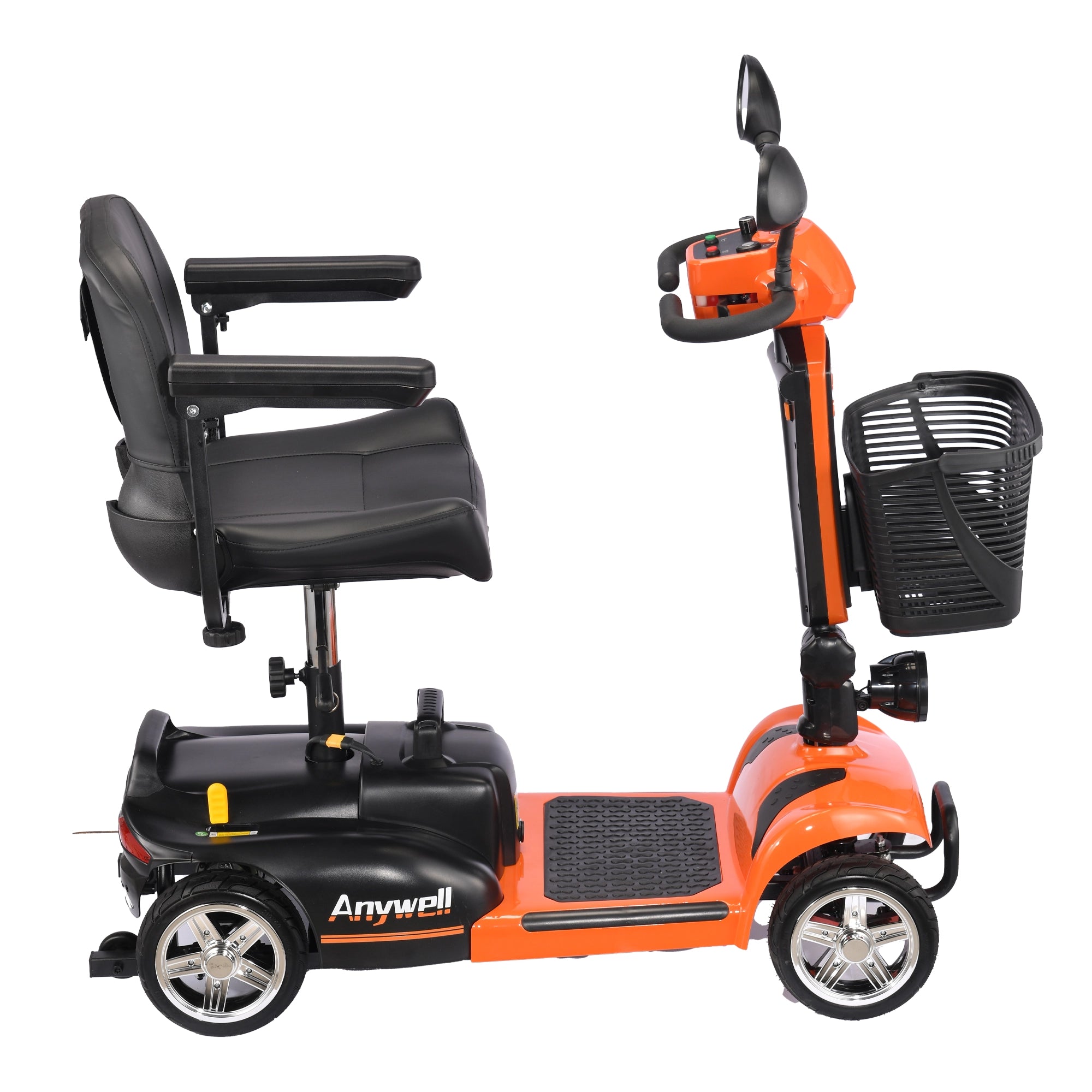

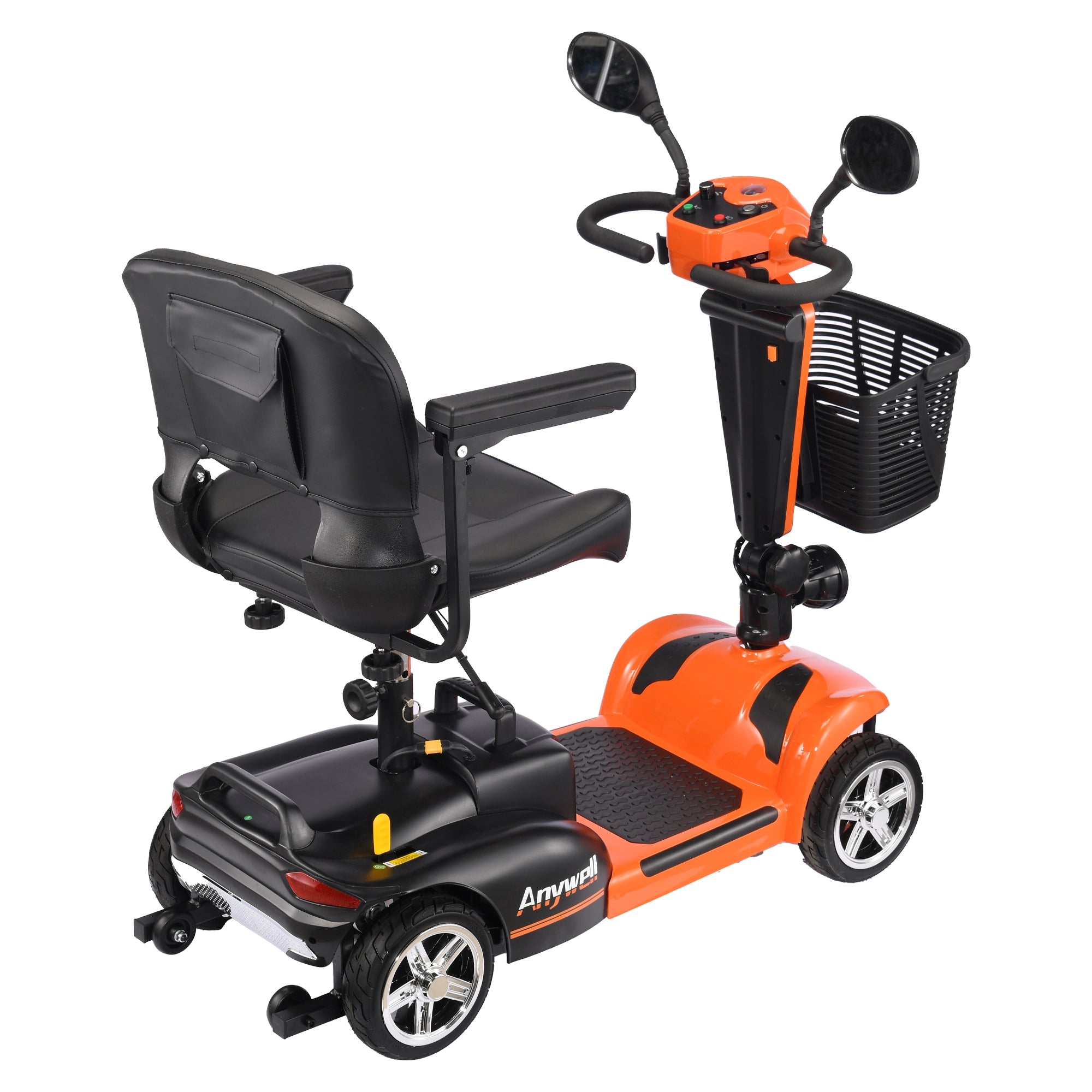

X-024 Electric Mobility Scooter with Wide Seat for Comfortable Ride
Mobility Scooter – Specifications
Below are the key specifications for this mobility scooter. Values are based on the provided factory spec sheet and may vary slightly by production batch and measurement method.
Key Performance
- Motor power: 350W
- Top speed: approx. 5 mph (8 km/h)
- Battery: 24V 20Ah (lead-acid)
- Charger: 24V 2A
- Estimated range: approx. 15.5 miles (25 km) (range varies; ±25% stated on the spec sheet)
- Max load capacity: up to 397 lb (180 kg)
Safety & Features
- Brake system: Electromagnetic brake
- Lighting: Yes (built-in light)
- Rear-view mirrors: Included
- Seat: Foldable
- Backrest: Foldable
Dimensions (Approx.)
| Item | Specification |
|---|---|
| Overall length | 45.3 in (1150 mm) |
| Overall height | approx. 37.6 in (955 mm) (to dashboard) |
| Rear wheel track / width | 19.3 in (490 mm) |
| Ground clearance | approx. 2.0 in (5 cm) |

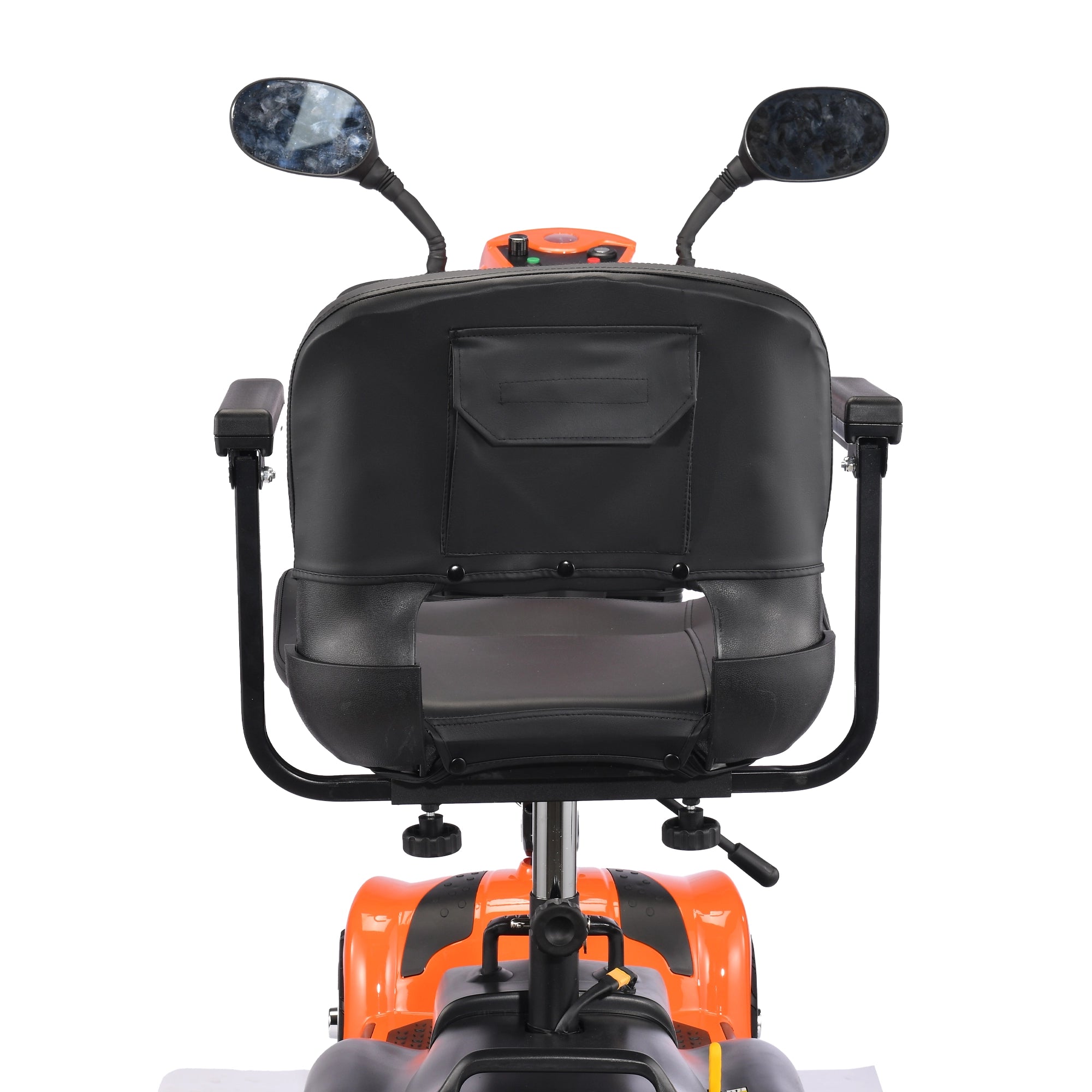

Seat & Rider Area (Approx.)
| Item | Specification |
|---|---|
| Seat width | 19.7 in (500 mm) |
| Seat depth | 16.3 in (415 mm) |
| Seat cushion thickness | 3.7 in (95 mm) |
| Backrest height | 14.8 in (375 mm) |
| Armrest height (adjustable) | 28.5–31.5 in (725–800 mm) |
| Armrest inner spacing | 24.4 in (620 mm) |
| Footboard to seat distance | 13.8 in (350 mm) |
Folded Size (Approx.)
| Item | Specification |
|---|---|
| Folded length | 42.5 in (1080 mm) |
| Folded width | 20.7 in (525 mm) |
| Folded height | 20.5 in (520 mm) |
Wheels & Handling
- Front wheel size: approx. 8.3 × 2.4 in (210 × 60 mm)
- Rear wheel size: approx. 8.3 × 2.4 in (210 × 60 mm)
- Minimum turning radius: approx. 67 in (1700 mm)
Weight (Approx.)
- Net weight (N.W.): 106 lb (48 kg)
- Gross weight (G.W.): 125 lb (56.5 kg)
- Heaviest main part: approx. 58.6 lb (26.58 kg)
350W motor • 50cm wide seat • Up to 180kg capacity
50cm seat width • 350W motor • 24V 20Ah

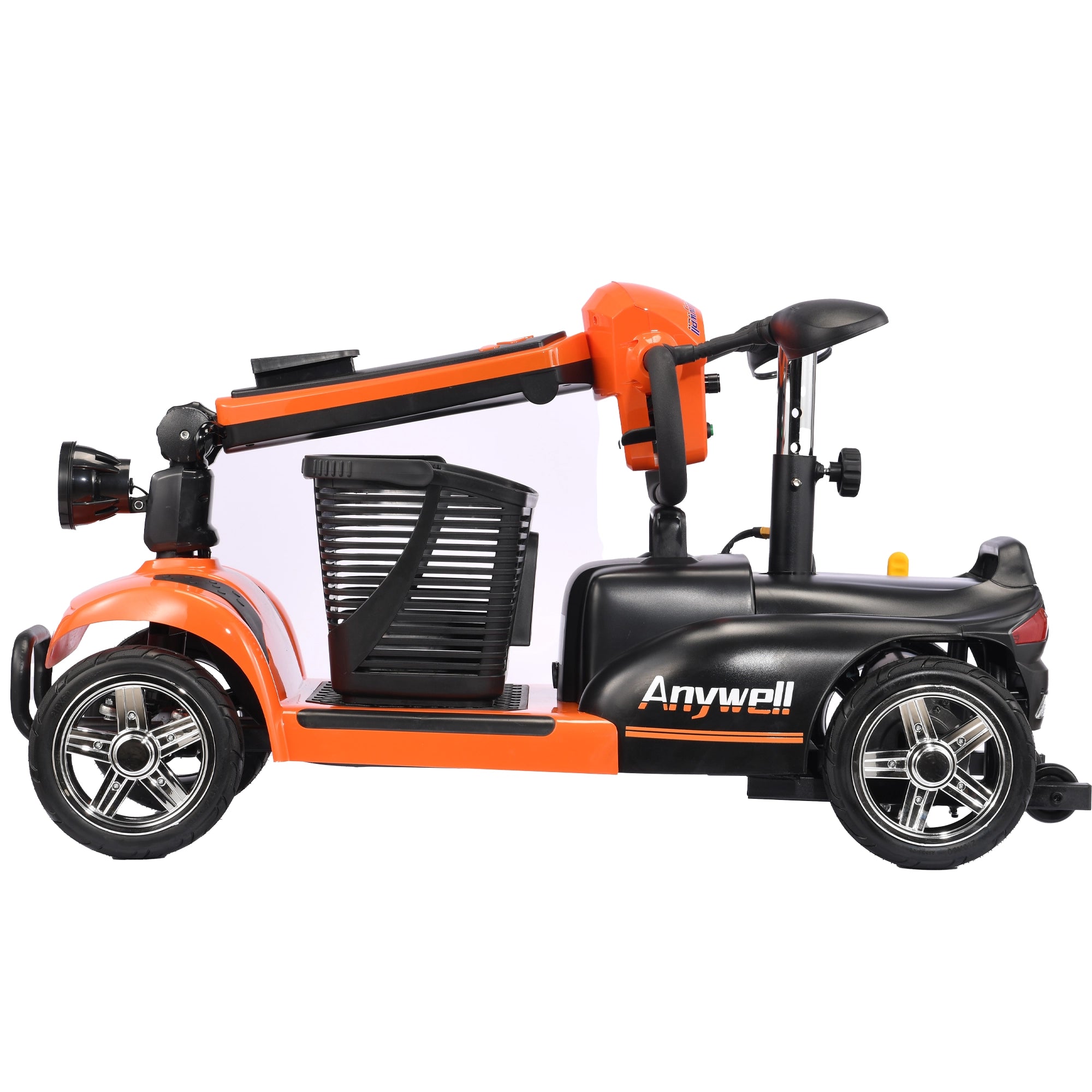

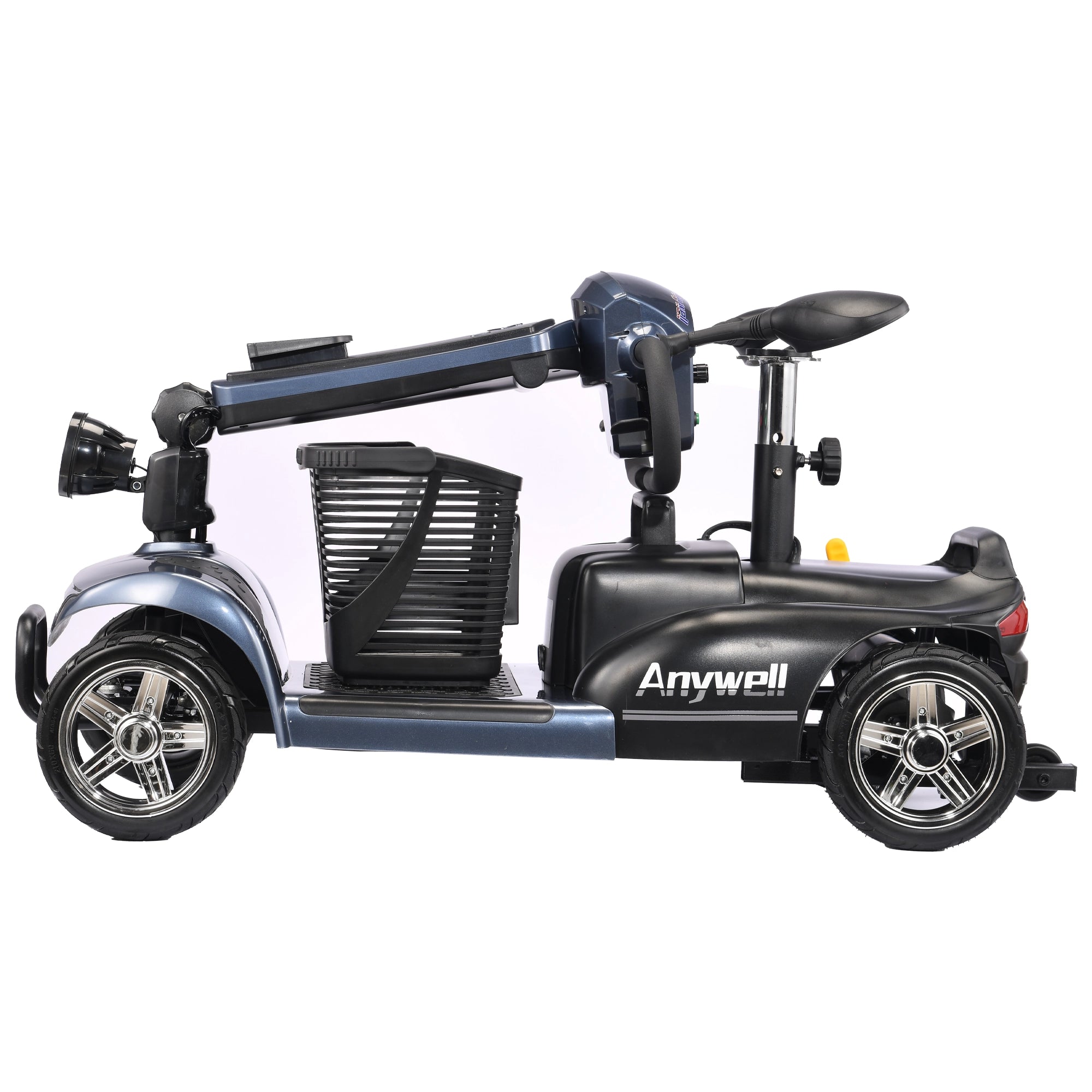

Fast-Folding Design.
Fast-Folding Design.
Fast-Folding Design.

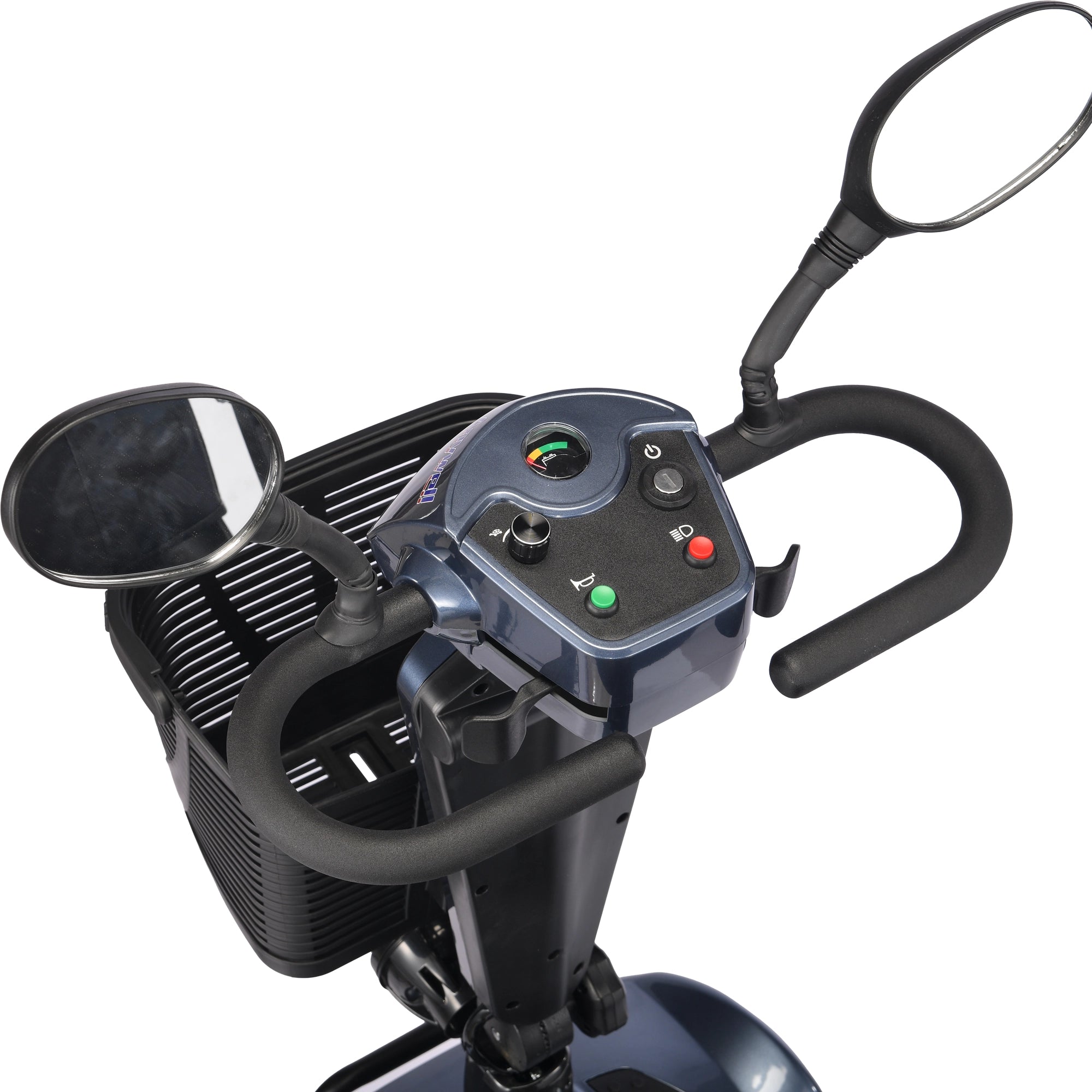

Simple Controls, Easy Riding
Intuitive buttons and an ergonomic handlebar—easy to use at a glance.
Add a tagline

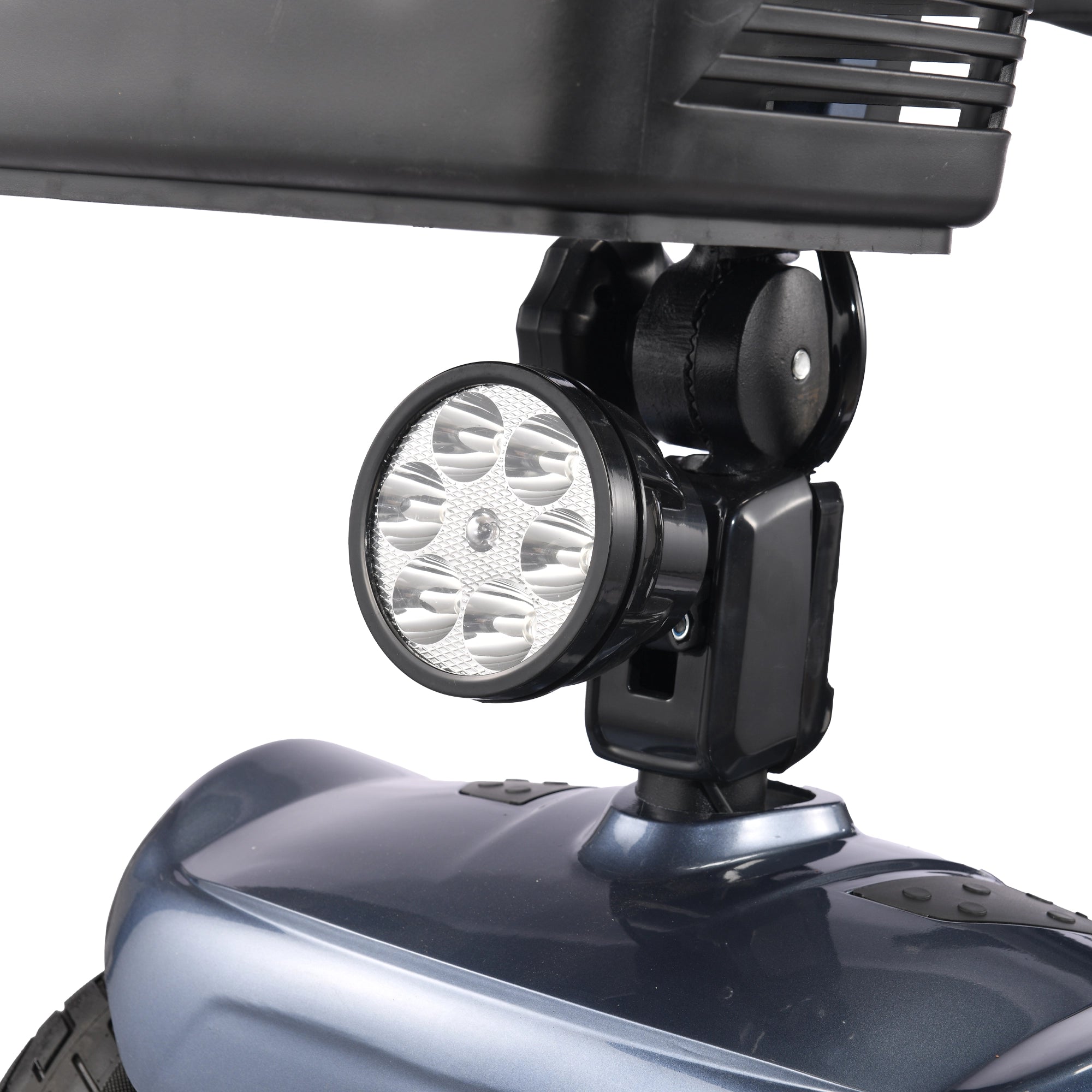

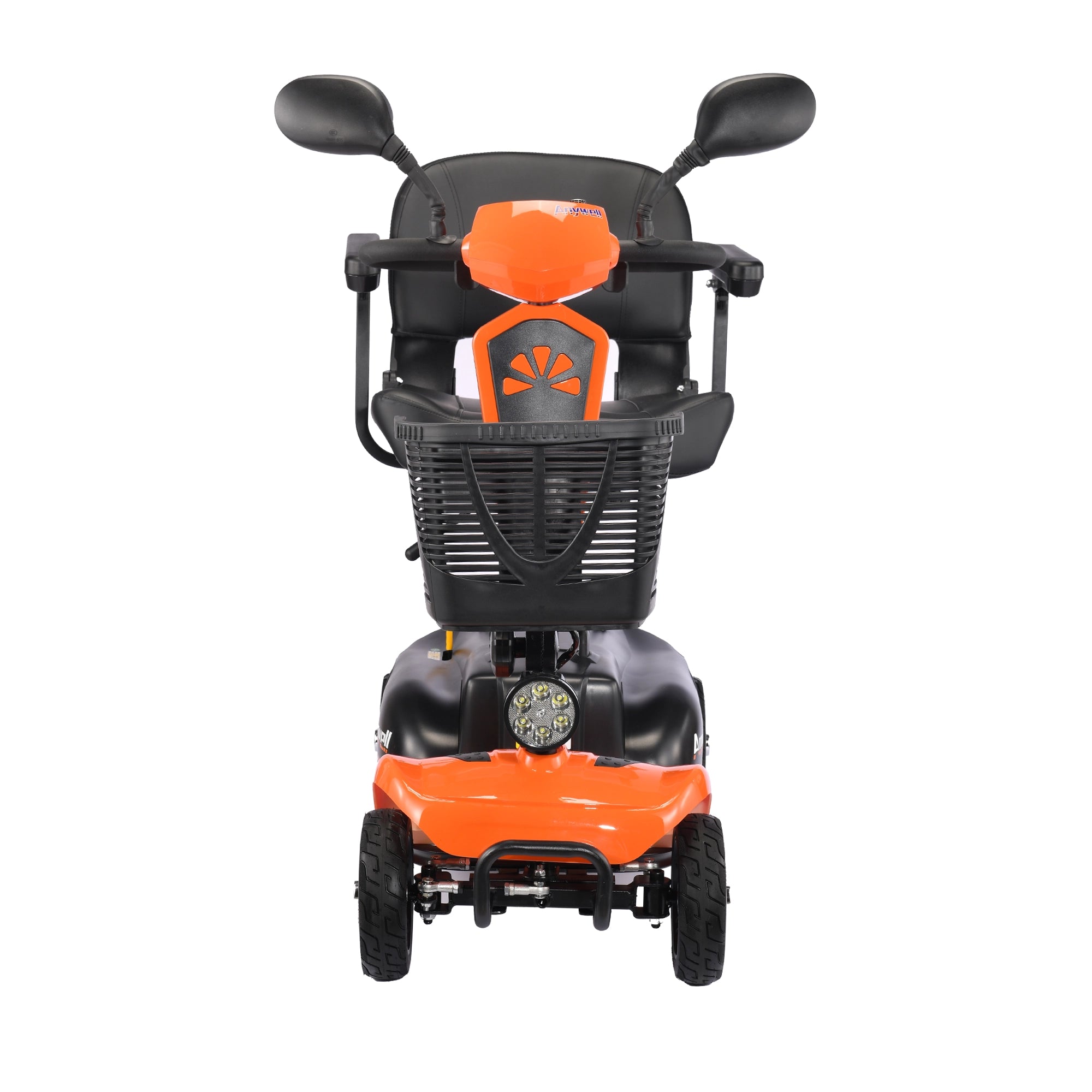

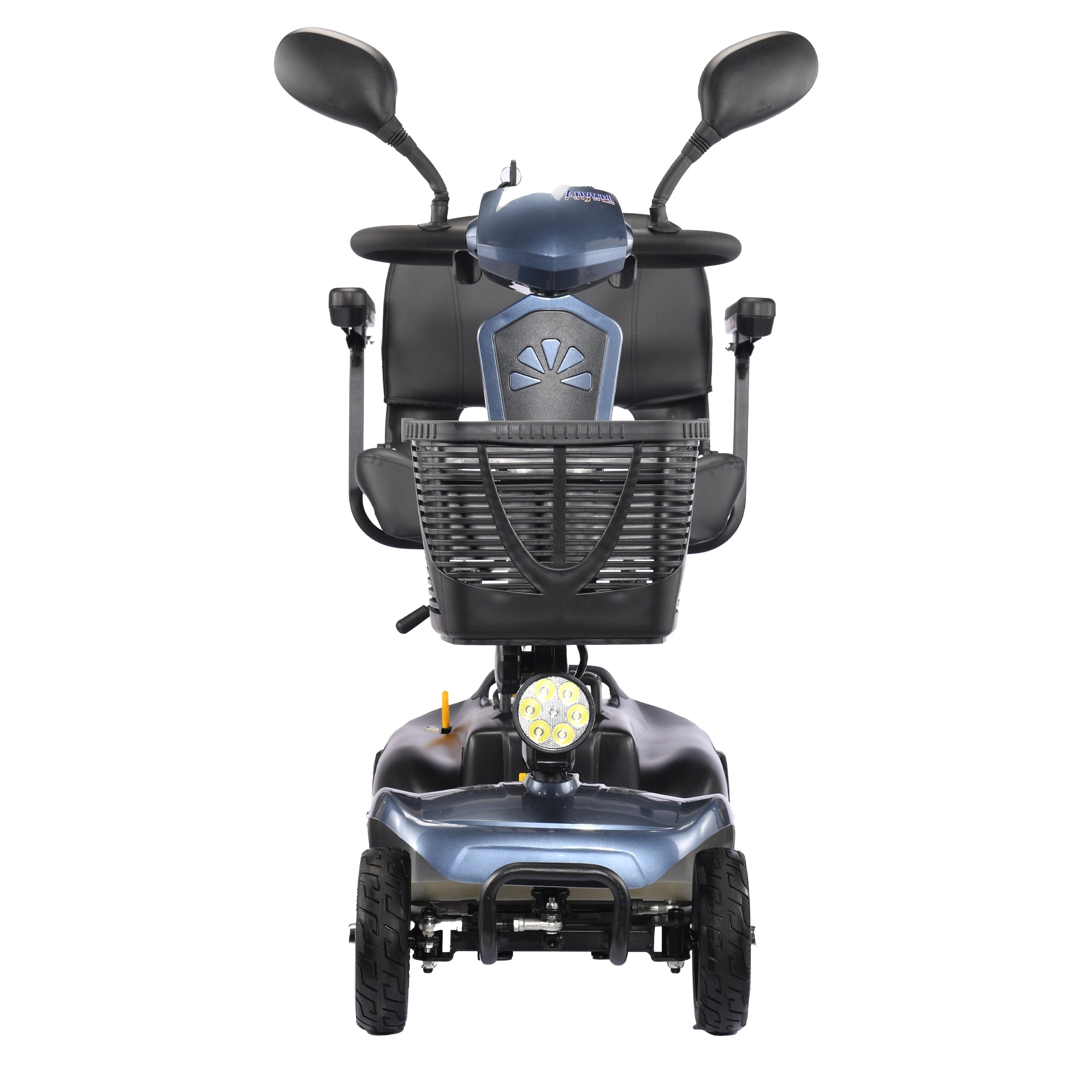

Front LED Headlight

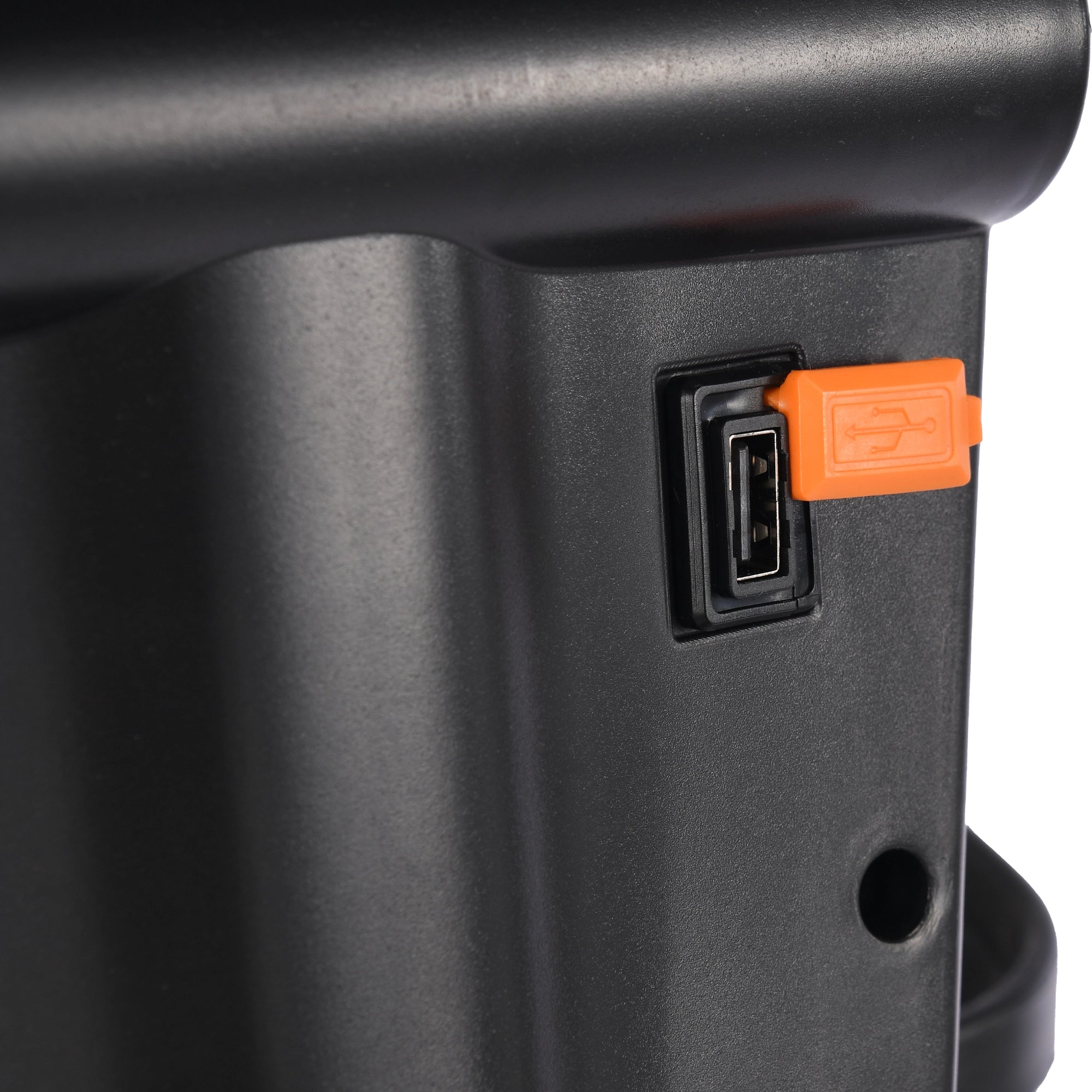

USB Charging Port (USB 2.0)
Convenient for charging small devices on the go.

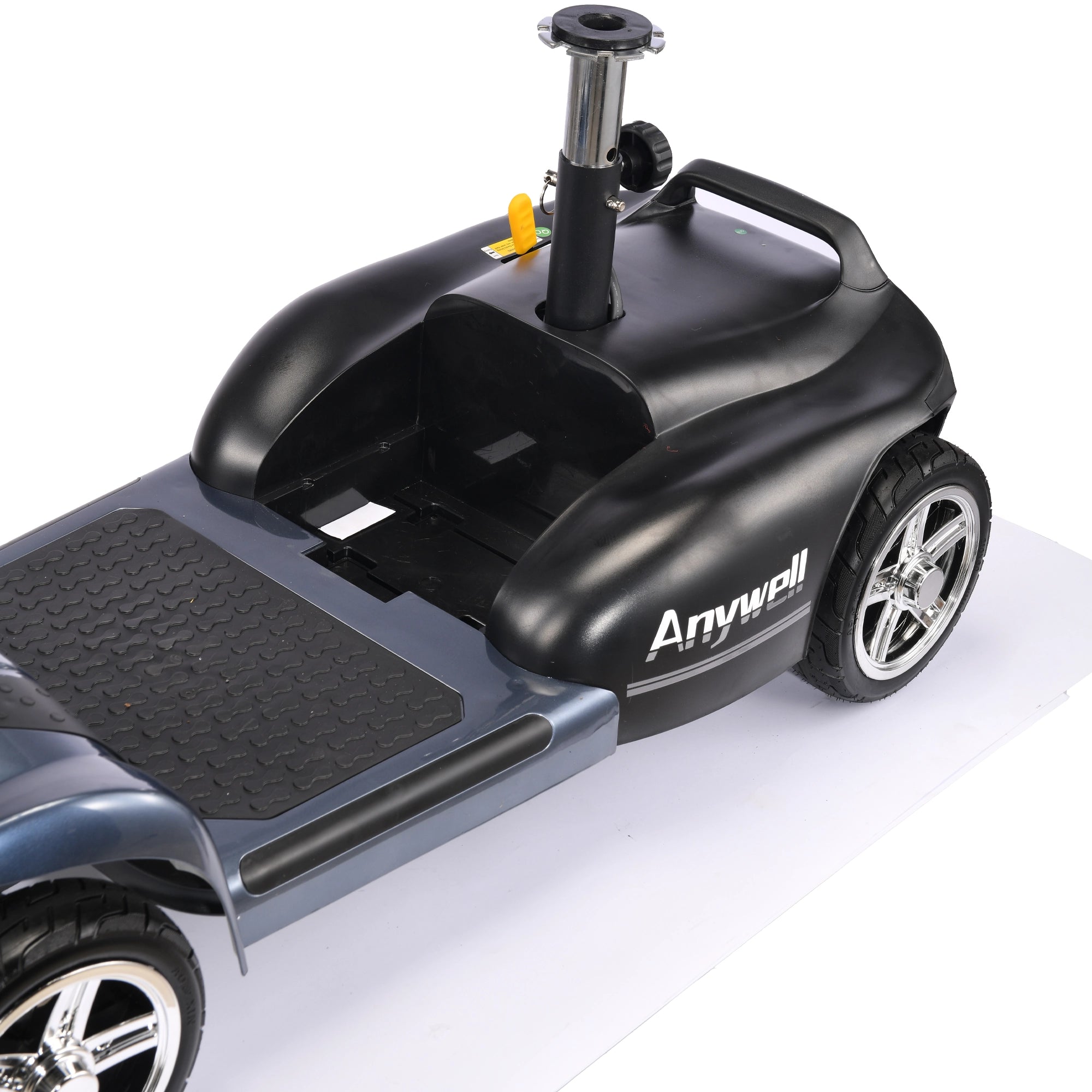

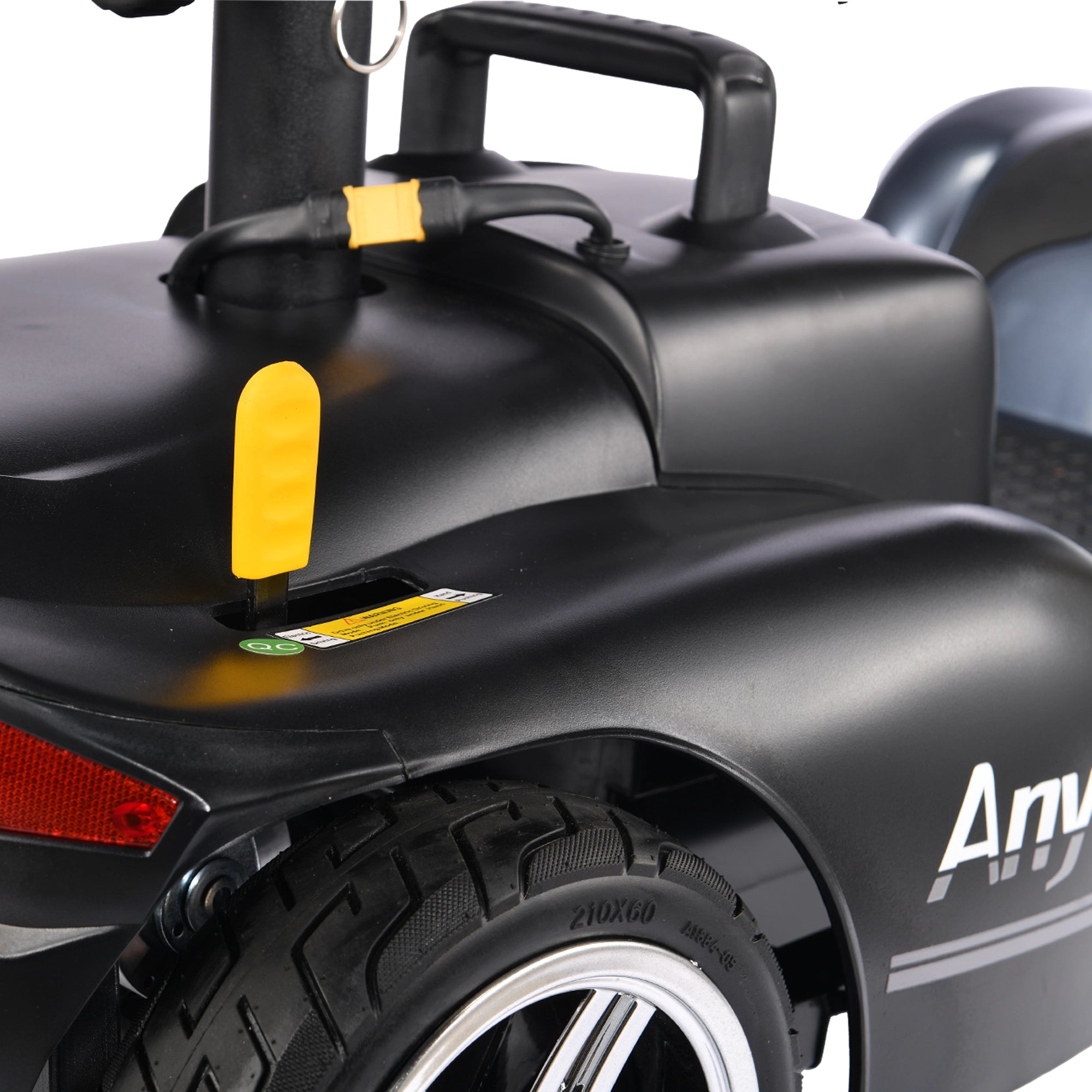

Removable Battery Compartment
Fits a 24V 20Ah lead-acid battery for easy access and charging.

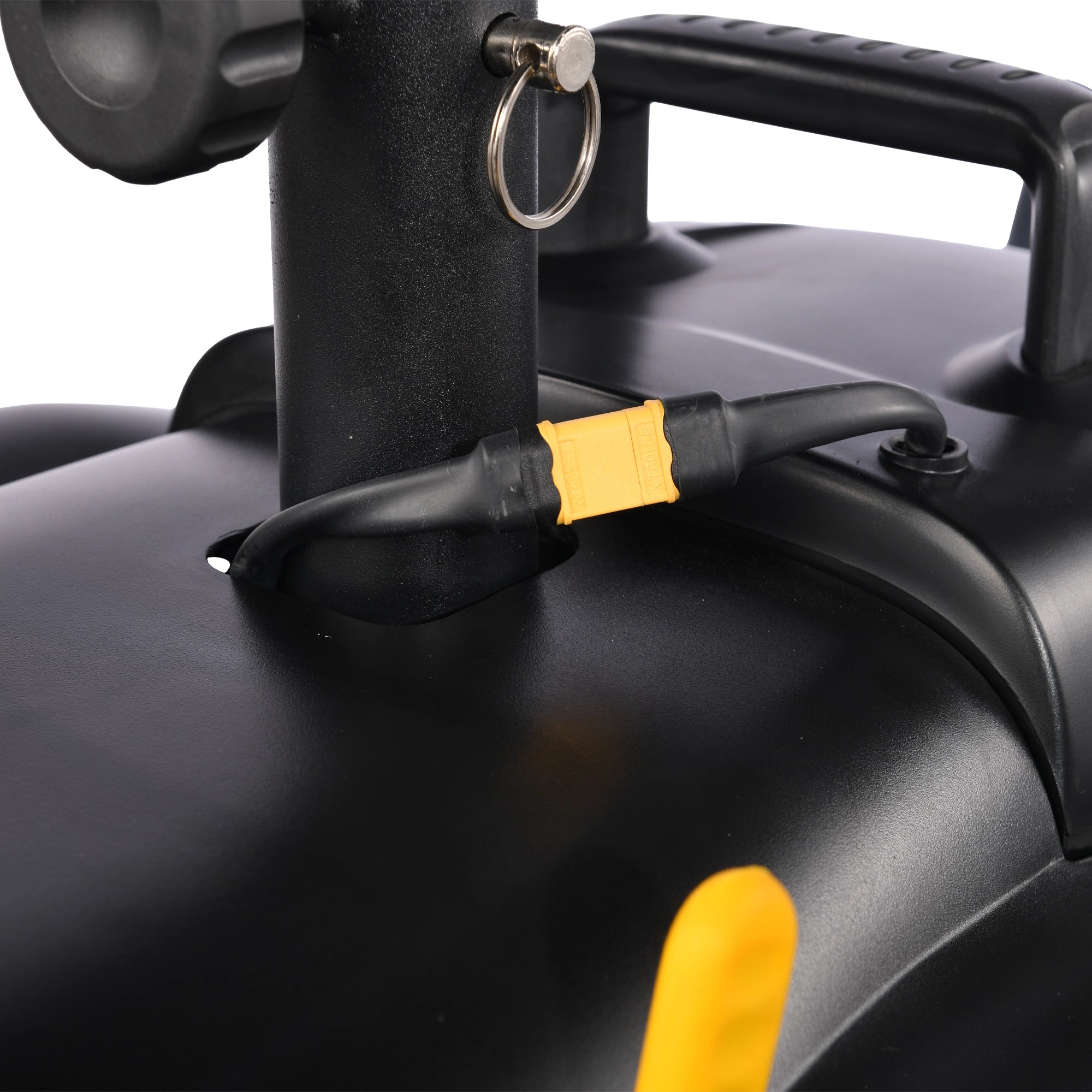

Plug-In Battery Design
Insert, connect, and power on.

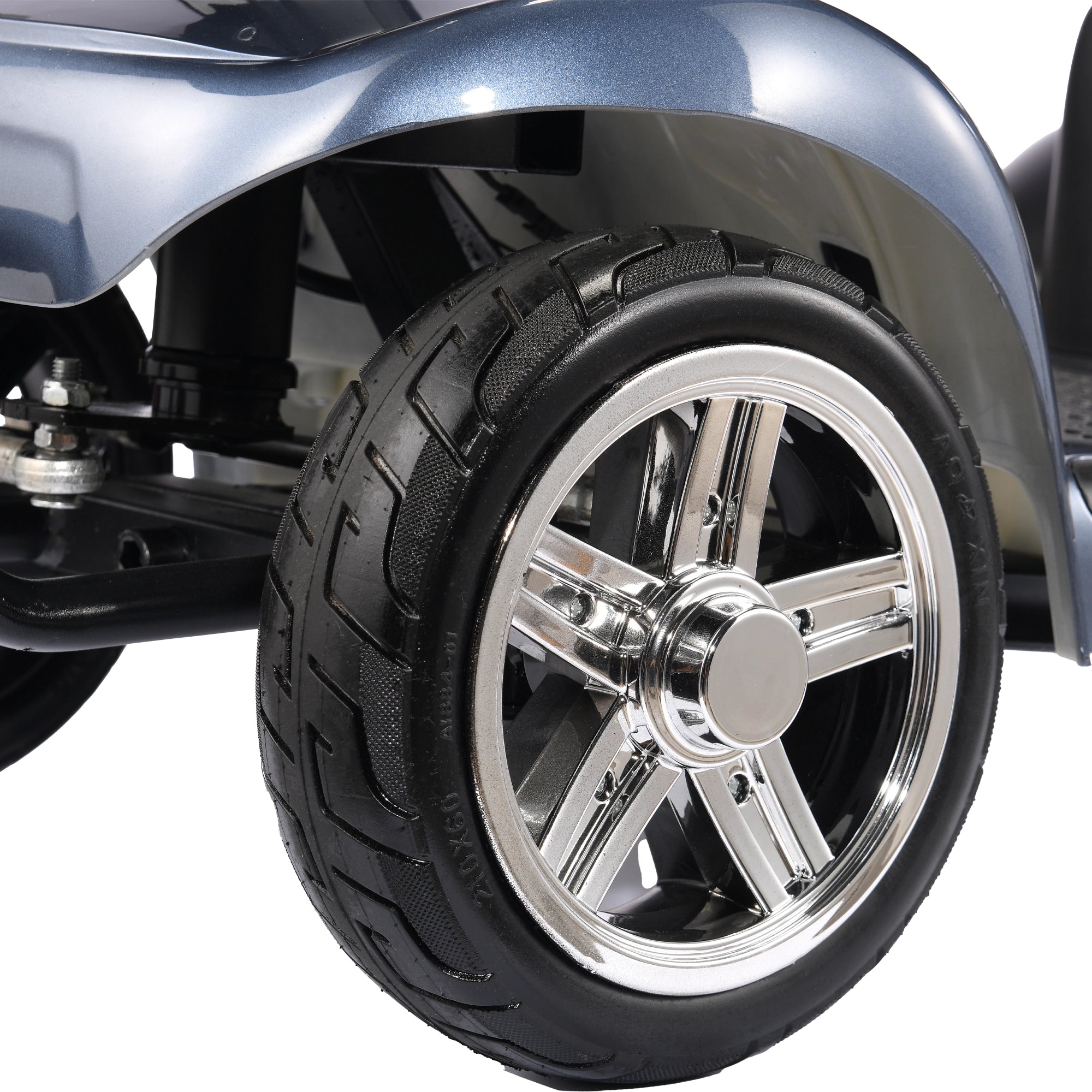

8.3" × 2.4" Tires (Front & Rear)
Wide tires for steady everyday riding.

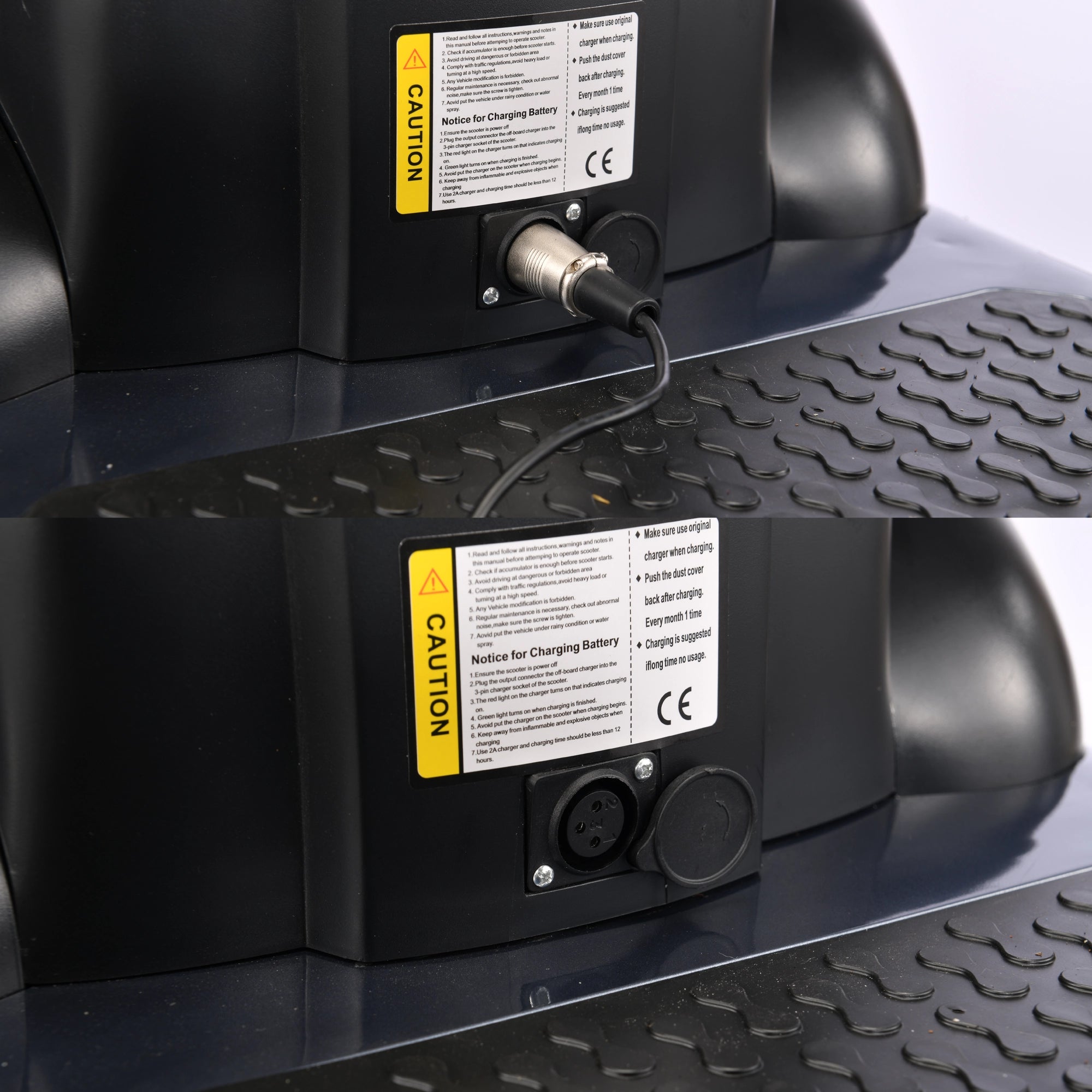

On-Board Charging Port
- Use the included/original 24V charger only.
- Charge in a dry, ventilated place.
- Do not charge in rain or where water may splash.
- Do not ride while charging.
- Keep charger and cables away from heat and flammable items.
FAQ
What is the top speed?
Approx. 5 mph (8 km/h).
What is the estimated range per charge?
Up to 15.5 miles (25 km) under ideal conditions. Real-world range varies with rider weight, speed, terrain, tire condition, and temperature (spec sheet notes ±25% variation).
What is the maximum weight capacity?
Up to 397 lb (180 kg).
What battery does it use? Is it removable?
24V 20Ah lead-acid battery pack. The battery pack is removable (as noted on the spec sheet).
What charger is included? How long does charging take?
Write content to answer to common questions your customers may have about your products, shipping policies..
What motor does it use?
350W motor.
What braking system does it have?
Electromagnetic brake (designed to help stop/hold the scooter when the throttle is released).
Does it have lights and mirrors?
Yes — built-in light and rear-view mirrors included.
Is the seat foldable? Is the backrest foldable?
Yes — foldable seat and foldable backrest.
What are the overall dimensions?
- Overall length: 45.3 in (1150 mm)
- Height to dashboard: 37.6 in (955 mm)
- Rear wheel track/width: 19.3 in (490 mm)
What are the folded dimensions?
- Folded length: 42.5 in (1080 mm)
- Folded width: 20.7 in (525 mm)
- Folded height: 20.5 in (520 mm)
What are the seat dimensions?
- Seat width: 19.7 in (500 mm)
- Seat depth: 16.3 in (415 mm)
- Seat cushion thickness: 3.7 in (95 mm)
- Backrest height: 14.8 in (375 mm)

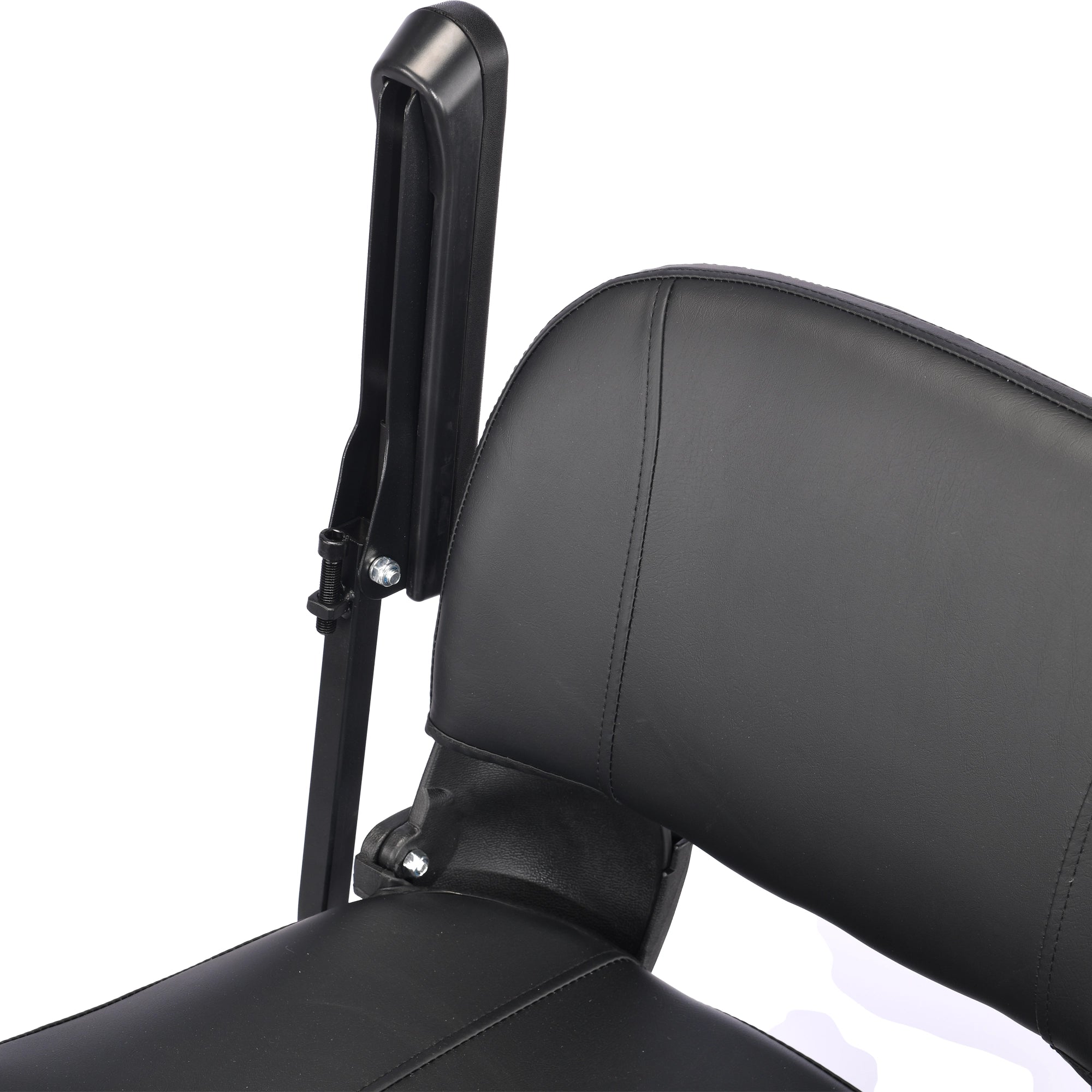

How adjustable are the armrests?
- Armrest height: 28.5–31.5 in (725–800 mm) (to the ground)
- Inner armrest spacing: 24.4 in (620 mm)
What is the turning radius?
Minimum turning radius: approx. 67 in (1700 mm).
How much does it weigh? What is the heaviest part?
- Net weight: 106 lb (48 kg)
- Gross weight: 125 lb (56.5 kg)
- Heaviest main part: approx. 58.6 lb (26.58 kg)
What is the ground clearance / obstacle clearance?
- Ground clearance: approx. 2.0 in (5 cm)
- Obstacle clearance height: approx. 2.0 in (5 cm)
(Real performance depends on speed, load, and surface conditions.)
The X-024 mobility scooter combines comfort and safety in a compact daily driver. Enjoy a wide, cushioned seat and a supportive backrest, plus a strong 397 lb capacity for added confidence. Electromagnetic braking helps you stop smoothly, while the built-in light and mirrors improve visibility. Powered by a 350W motor with up to 15.5 miles of range, the X-024 is made to keep your day moving—comfortably and reliably.
